$5,070.00
20 HP four-stroke, 432cc twin-cylinder SOHC engine
20″ long shaft with remote mechanical steering
Electronic Fuel Injection (EFI) with electric/manual start
Power tilt with 45-degree steering angle
Lightweight at 141 lbs with built-in carry handles
YDC-30 alloy and 5-stage coating for corrosion resistance
Freshwater flush device for easy maintenance
16-amp alternator for electronics support

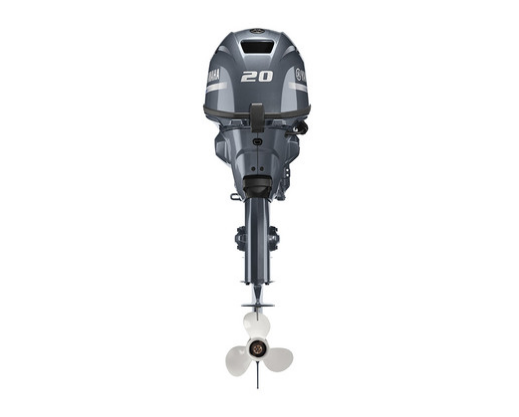

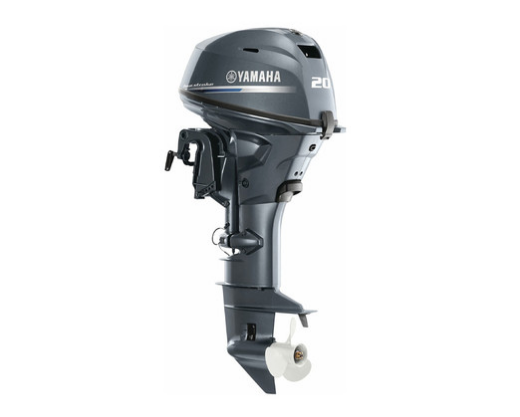

The Yamaha F20LWPB is a compact, four-stroke outboard motor designed for small to mid-sized boats, including aluminum fishing boats, tenders, inflatables, and small pontoons up to 14-16 feet. Featuring a 20-inch long shaft, it weighs 141 lbs, making it one of the lightest in its 20 HP class. The 432cc (26.4 cubic inch) twin-cylinder SOHC engine with Electronic Fuel Injection (EFI) delivers solid power, quick acceleration, and excellent fuel efficiency, with a full throttle range of 5000-6000 RPM. Equipped with remote mechanical steering, electric and manual start, and power tilt, it offers versatile control and easy operation. The motor features a 45-degree steering angle for maximum maneuverability, a freshwater flush device for extended engine life, and built-in resting pads and carry handles for portability. Built for durability in freshwater and saltwater, it uses Yamaha’s YDC-30 aluminum alloy, zinc coating, high-quality stainless steel, and a 5-stage exterior coating for superior corrosion resistance. The F20LWPB is built on the award-winning platform of the Yamaha F25, ensuring reliable, low-maintenance performance.
| Engine | 4-stroke, SOHC | 2-cylinder | 432cc / 26.4 cu in | 20 HP @ 5000-6000 RPM | EFI | Digital CDI ignition | Water-cooled |
| Shaft | 20″ long | Corrosion-resistant | 9.25″ x 10″ 3-blade prop | Power tilt | Shallow water drive | Standard rotation | Salt/freshwater rated |
| Controls | Remote mechanical | Electric/manual start | Power tilt | 45° steering angle | Front-mounted controls | Engine alert system | Safety lanyard |
| Charging | 16 amps / 192 watts | Low-speed charging | Regulated charging | Supports electronics | Battery cable | Maintenance-free | Optional rectifier |
| Weight | 141 lbs / 64 kg | Lightweight design | Balanced weight | Portable for class | Minimal drag | Easy transport | Transom mount |
| Performance | 5000-6000 RPM range | Fuel-efficient | Low emissions | High torque | Quick acceleration | Quiet operation | Top speed ~20-22 mph |
| Compatibility | 14-16 ft boats | Aluminum boats, tenders | Inflatables, pontoons | 6-gal external tank | Aluminum prop | Salt/freshwater rated | Remote steer boats |
| Dimensions | 20″ shaft length | 16.5″ W | 40.5″ H | 26.1″ L | Corrosion-resistant | Transom mount | 62°-63° tilt range |
| Engine | 4-stroke, SOHC | 2-cylinder | 432cc / 26.4 cu in | 20 HP @ 5000-6000 RPM | EFI | Digital CDI ignition | Water-cooled |
| Shaft | 20″ long | Corrosion-resistant | 9.25″ x 10″ 3-blade prop | Power tilt | Shallow water drive | Standard rotation | Salt/freshwater rated |
| Controls | Remote mechanical | Electric/manual start | Power tilt | 45° steering angle | Front-mounted controls | Engine alert system | Safety lanyard |
| Charging | 16 amps / 192 watts | Low-speed charging | Regulated charging | Supports electronics | Battery cable | Maintenance-free | Optional rectifier |
| Weight | 141 lbs / 64 kg | Lightweight design | Balanced weight | Portable for class | Minimal drag | Easy transport | Transom mount |
| Performance | 5000-6000 RPM range | Fuel-efficient | Low emissions | High torque | Quick acceleration | Quiet operation | Top speed ~20-22 mph |
| Compatibility | 14-16 ft boats | Aluminum boats, tenders | Inflatables, pontoons | 6-gal external tank | Aluminum prop | Salt/freshwater rated | Remote steer boats |
| Dimensions | 20″ shaft length | 16.5″ W | 40.5″ H | 26.1″ L | Corrosion-resistant | Transom mount | 62°-63° tilt range |
High-Performance Engine: 432cc twin-cylinder SOHC engine with EFI and a streamlined intake manifold delivers strong torque, quick acceleration, and class-leading fuel efficiency, using 87-octane fuel with up to 10% ethanol.
Lightweight Design: At 141 lbs, it’s among the lightest 20 HP outboards, enhancing portability and reducing drag on lightweight craft.
Reliable Starting: EFI with electric and manual start options ensures reliable ignition, with a decompression device for easy manual starts.
Precision Control: Remote mechanical steering with front-mounted controls facilitates smooth shifting, easy shallow water drive, and single-action steering friction adjustment.
High-Output Charging: 16-amp alternator provides ample power for onboard electronics, even at low RPM, supporting navigation and fish-finding equipment.
Corrosion Resistance: YDC-30 aluminum alloy, zinc coating, stainless steel components, and a 5-stage exterior coating ensure durability in harsh marine environments, with a freshwater flush device for easy maintenance.
Max Maneuverability: 45-degree steering angle in each direction enhances agility, ideal for tight quarters and docking.
Portability and Storage: Built-in resting pads, carry handles, and an easy oil retention system allow for convenient transport and on-side storage without oil leakage or cowling scuffs.
