Original price was: $4,650.00.$2,325.00Current price is: $2,325.00.
25 HP four-stroke, 500cc inline three-cylinder engine
15″ short shaft with multi-function tiller
Electronic Fuel Injection (EFI) for reliable starts
Lightweight at 138 lbs with low-vibration mounts
3.2-gallon external fuel tank
Corrosion-resistant for freshwater/saltwater use
Electric start with manual tilt
Adjustable throttle and steering tension

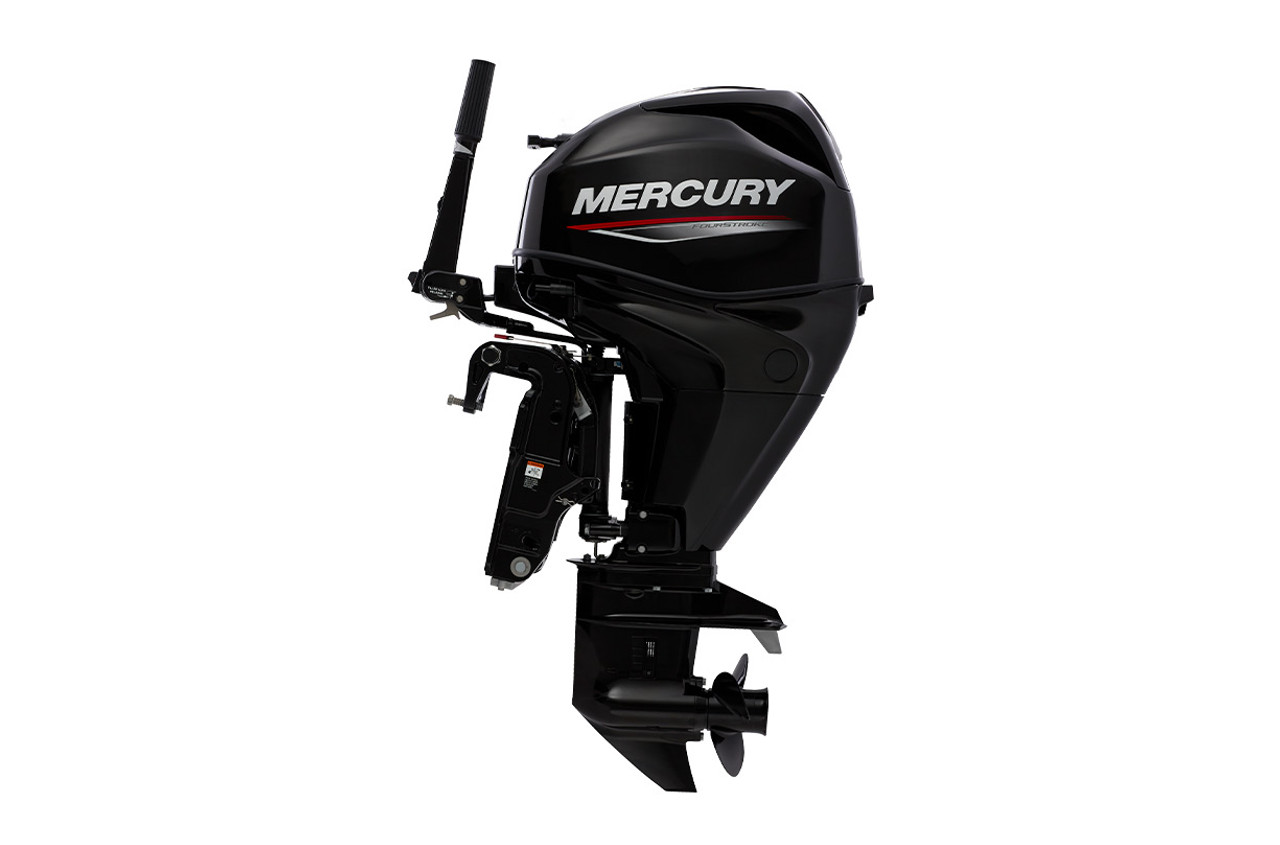

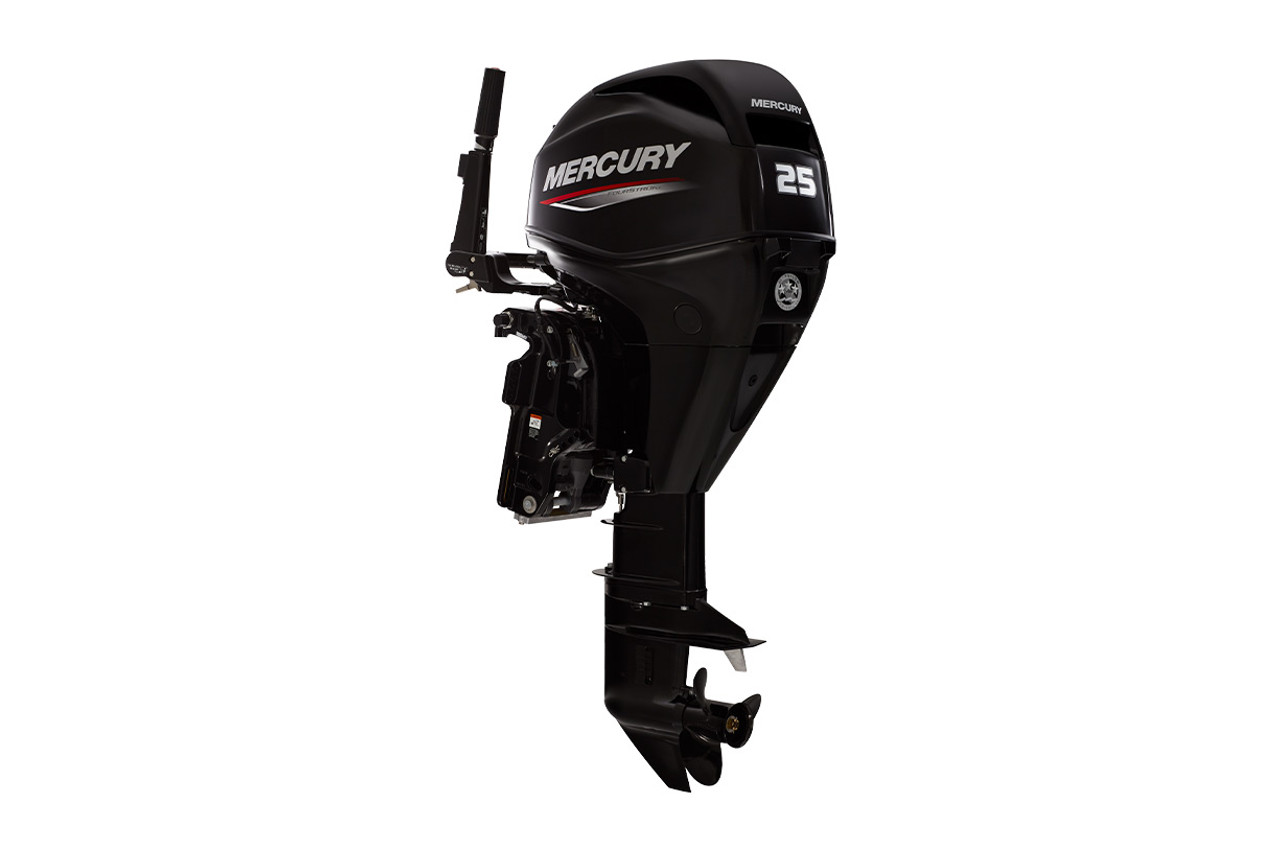

The Mercury 25EH is a compact, lightweight four-stroke outboard motor designed for small boats such as jon boats, skiffs, inflatables, and small fishing vessels up to 14-16 feet. Featuring a 15-inch short shaft, it weighs 138 lbs, making it one of the lightest in its 25 HP class. The 500cc (30.5 cubic inch) inline three-cylinder engine with Electronic Fuel Injection (EFI) delivers strong low-end torque for quick planing and a full throttle range of 5000-6000 RPM. Its innovative multi-function tiller handle, adjustable 18 degrees port or starboard and reversible for left- or right-hand use, offers exceptional control and comfort. The motor features a 3.2-gallon external fuel tank, an electric start system for effortless ignition, and low-vibration wishbone mounts for smooth operation. Built for durability in freshwater and saltwater, it uses low-copper aluminum alloys, stainless steel components, and a multi-layered priming and painting process for superior corrosion resistance. With reliable starting, instant throttle response, and fuel efficiency, the 25EH is ideal for worry-free boating.
| Engine | 4-stroke, SOHC | Inline 3-cylinder | 500cc / 30.5 cu in | 25 HP @ 5000-6000 RPM | EFI, 4-valve | Digital CD ignition | Water-cooled |
| Shaft | 15″ short | Corrosion-resistant | 9.2″ x 10.1″ 3-blade prop | Shallow water drive | 16° trim range | Standard rotation | Salt/freshwater rated |
| Controls | Multi-function tiller | Electric start | Adjustable throttle | 18° tiller adjustment | Steering tension control | Safety lanyard | Engine alert system |
| Charging | 12 amps / 145 watts | Low-speed charging | Regulated charging | Supports electronics | Optional alternator | Maintenance-free | Battery required |
| Weight | 138 lbs / 63 kg | Lightweight design | Balanced weight | Portable for class | Minimal drag | Easy transport | Transom mount |
| Performance | 5000-6000 RPM range | Fuel-efficient | Low emissions | High torque | Quick acceleration | Quiet operation | Top speed 25-28 mph |
| Compatibility | 14-16 ft boats | Jon boats, skiffs | Inflatables | 3.2-gal external tank | Aluminum prop | Salt/freshwater rated | Tiller steer boats |
| Dimensions | 15″ shaft length | 16.2″ W | 39.8″ H | 26.1″ L | Corrosion-resistant | Transom mount | Manual tilt |
| Engine | 4-stroke, SOHC | Inline 3-cylinder | 500cc / 30.5 cu in | 25 HP @ 5000-6000 RPM | EFI, 4-valve | Digital CD ignition | Water-cooled |
| Shaft | 15″ short | Corrosion-resistant | 9.2″ x 10.1″ 3-blade prop | Shallow water drive | 16° trim range | Standard rotation | Salt/freshwater rated |
| Controls | Multi-function tiller | Electric start | Adjustable throttle | 18° tiller adjustment | Steering tension control | Safety lanyard | Engine alert system |
| Charging | 12 amps / 145 watts | Low-speed charging | Regulated charging | Supports electronics | Optional alternator | Maintenance-free | Battery required |
| Weight | 138 lbs / 63 kg | Lightweight design | Balanced weight | Portable for class | Minimal drag | Easy transport | Transom mount |
| Performance | 5000-6000 RPM range | Fuel-efficient | Low emissions | High torque | Quick acceleration | Quiet operation | Top speed 25-28 mph |
| Compatibility | 14-16 ft boats | Jon boats, skiffs | Inflatables | 3.2-gal external tank | Aluminum prop | Salt/freshwater rated | Tiller steer boats |
| Dimensions | 15″ shaft length | 16.2″ W | 39.8″ H | 26.1″ L | Corrosion-resistant | Transom mount | Manual tilt |
High-Performance Engine: 500cc inline three-cylinder engine with EFI and a 4-valve SOHC design provides strong torque, quick acceleration, and fuel efficiency for small to medium boats.
Innovative Tiller: Multi-function tiller adjusts 18 degrees port/starboard, offers reversible throttle grip rotation, and includes a stop button for ergonomic, ambidextrous control.
Lightweight Design: At 138 lbs, it’s among the lightest 25 HP outboards, enhancing portability and reducing drag on small vessels.
Reliable Starting: EFI and electric start system ensure effortless ignition in all conditions, with instant throttle response for smooth operation.
Corrosion Resistance: Low-copper aluminum alloys, stainless steel water pump housing, zinc-coated passages, and sacrificial anodes ensure durability in harsh marine environments.
Smooth Operation: Wishbone mounts and tuned intake reduce vibration, while a through-propeller-hub exhaust minimizes noise for a comfortable ride.
Fuel Efficiency: EFI optimizes fuel delivery, paired with a 3.2-gallon external tank for extended range, using 87-octane fuel with up to 10% ethanol.
Safety Features: Engine alert system monitors low oil pressure, overheating, over-revving, and sensor failure, with a safety lanyard for emergency stops.
