$3,999.99
13.3″ Full-HD touchscreen with 1920×1080 resolution
MEGA Side Imaging+ with 250 ft range
MEGA Down Imaging+ with 200 ft depth
Dual Spectrum CHIRP sonar
One-Boat Network™ integration
AutoChart Live real-time mapping
Dual Ethernet, NMEA 2000®, Wi-Fi, Bluetooth®
LakeMaster®, CoastMaster™, Navionics® support
| Display | 13.3-inch Full-HD | 1920×1080 resolution | Cross Touch® interface | Touchscreen or keypad | Sunlight-readable | Anti-glare coating | Gimbal or in-dash mount |
| Sonar | MEGA Side Imaging+ | MEGA Down Imaging+ | Dual Spectrum CHIRP | Up to 250 ft side range | Up to 200 ft depth | 2kW 2D CHIRP support | Airmar transducer ID |
| Charts | Humminbird Basemap | LakeMaster® compatible | CoastMaster™ compatible | Navionics® compatible | AutoChart Live | 8-hour recording | Zero Line SD support |
| Networking | Dual Ethernet ports | NMEA 2000® | HDMI In/Out | Wi-Fi | Bluetooth® | CZone® compatible | One-Boat Network™ |
| Transducer | Transom mount (std model) | CHO model option | MEGA 360 Imaging | Stainless steel thru-hull | High-frequency support | Wide-angle coverage | Depth up to 1250 ft |
| Waypoints/Routes | 10,000 waypoints | 50 routes | 50 tracks | 20,000 points per track | Import/export support | Custom naming | Route optimization |
| Compatibility | Minn Kota i-Pilot Link | Talon/Raptor anchors | Cannon Optimum | Humminbird CHIRP Radar | Autopilot | Fusion® audio | VHF radio |
| Dimensions | 15.7″ W | 9.1″ H | 3.3″ D | 398 mm W | 231 mm H | 84 mm D | Low-profile design |
| Display | 13.3-inch Full-HD | 1920×1080 resolution | Cross Touch® interface | Touchscreen or keypad | Sunlight-readable | Anti-glare coating | Gimbal or in-dash mount |
| Sonar | MEGA Side Imaging+ | MEGA Down Imaging+ | Dual Spectrum CHIRP | Up to 250 ft side range | Up to 200 ft depth | 2kW 2D CHIRP support | Airmar transducer ID |
| Charts | Humminbird Basemap | LakeMaster® compatible | CoastMaster™ compatible | Navionics® compatible | AutoChart Live | 8-hour recording | Zero Line SD support |
| Networking | Dual Ethernet ports | NMEA 2000® | HDMI In/Out | Wi-Fi | Bluetooth® | CZone® compatible | One-Boat Network™ |
| Transducer | Transom mount (std model) | CHO model option | MEGA 360 Imaging | Stainless steel thru-hull | High-frequency support | Wide-angle coverage | Depth up to 1250 ft |
| Waypoints/Routes | 10,000 waypoints | 50 routes | 50 tracks | 20,000 points per track | Import/export support | Custom naming | Route optimization |
| Compatibility | Minn Kota i-Pilot Link | Talon/Raptor anchors | Cannon Optimum | Humminbird CHIRP Radar | Autopilot | Fusion® audio | VHF radio |
| Dimensions | 15.7″ W | 9.1″ H | 3.3″ D | 398 mm W | 231 mm H | 84 mm D | Low-profile design |
Advanced Sonar: MEGA Side Imaging+ and MEGA Down Imaging+ deliver 20% more detail, with support for 2D CHIRP transducers up to 2kW.
Real-Time Mapping: AutoChart Live maps depth, bottom hardness, and vegetation, with 8 hours of recording and Zero Line SD card support.

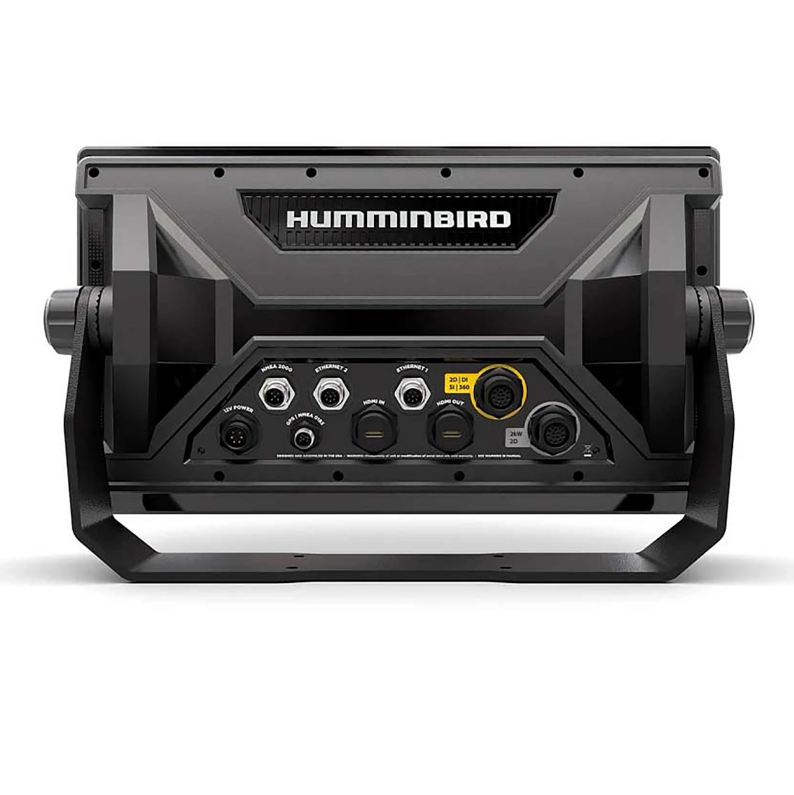

Networking: Dual Ethernet ports connect multiple displays and accessories like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
Smart Connectivity: Wi-Fi and Bluetooth® enable wireless updates via FishSmart App and smartphone notifications.
HDMI Support: HDMI In/Out ports for connecting cameras or external displays.
Navigation: Built-in GPS with Humminbird Basemap for 10,000+ U.S. lakes and coastal waters, plus premium chart compatibility.
Durable Design: Water-resistant, with gimbal or in-dash mounting for harsh marine environments.
One-Boat Network™: Controls Minn Kota trolling motors, Talon/Raptor anchors, and Cannon Optimum downriggers.
