$2,999.00
12-inch SolarMAX™ HD touchscreen with extreme-angle visibility
Ultra-high-definition Active Imaging™ HD sonar for clear fish and structure views
High-resolution ActiveTarget® 2 Live Sonar for real-time fish tracking
Preloaded C-MAP® DISCOVER OnBoard charts with 1-foot contours
Touchscreen control of Power-Pole® anchors and Ghost® Trolling Motor

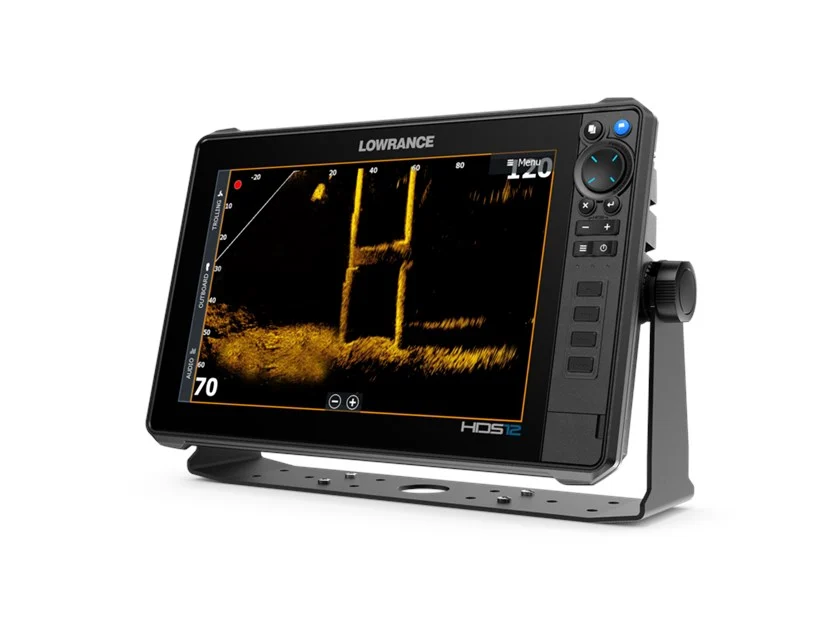

The Lowrance HDS PRO 12″ with Active Imaging™ HD is a top-tier fishfinder and chartplotter, designed to deliver unmatched clarity and control for serious anglers. Featuring a 12-inch SolarMAX™ HD touchscreen, it provides high-definition views from any angle, even in direct sunlight or with polarized lenses. Equipped with ultra-high-definition Active Imaging™ HD sonar and high-resolution ActiveTarget® 2 Live Sonar, it offers real-time visualization of fish and structure, allowing you to observe their reactions to your lure. Preloaded with detailed C-MAP® DISCOVER OnBoard charts featuring 1-foot contours for over 19,000 U.S. lakes and 9,400 Canadian lakes, it ensures precise navigation. With full bow-to-stern networking, including touchscreen control of Power-Pole® anchors and Ghost® Trolling Motor, this unit is the centerpiece of an advanced fishing system.
| Display | 12″ SolarMAX HD touchscreen | 1280×800 | 1200 nits | Wide angles | Multi-touch, programmable keys | Pure White LED | Horizontal/Vertical |
| Sonar | ActiveTarget 2 ready | Medium/High (83/200 kHz) | 455/800/1200 kHz | 1000 ft (CHIRP), 300 ft (SideScan) | SideScan/DownScan (S3100 req.) | Forward, Down, Scout | 180°/270° with second AT2 |
| Navigation | 10Hz GPS/GLONASS | C-MAP DISCOVER OnBoard | Navionics, C-MAP REVEAL | Easy Routing, Autorouting | C-MAP Genesis Live | 3000 waypoints | 100 routes |

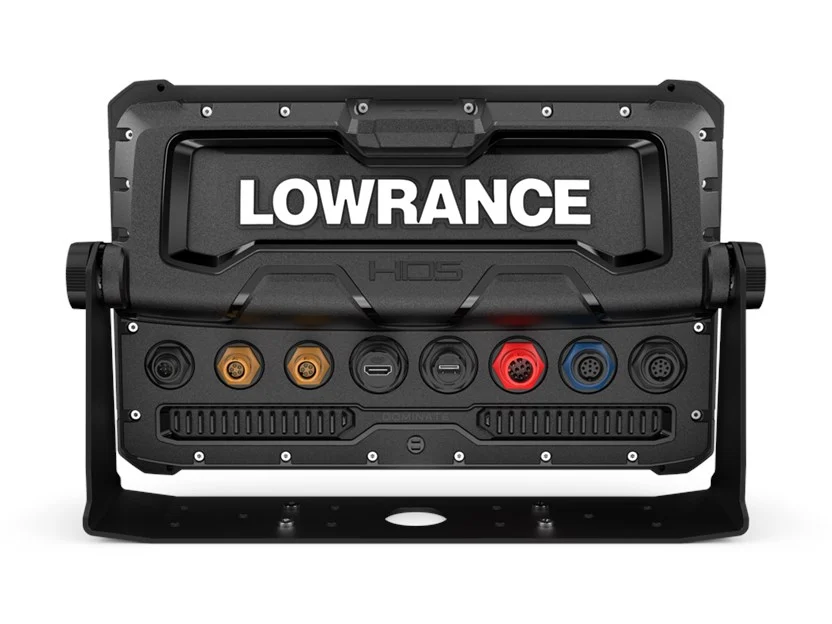

| Connectivity | 2 ports | NMEA 2000 | Wi-Fi, Bluetooth | Dual MicroSD slots | Power-Pole control | Ghost Trolling Motor control | Halo 20/20+/24 compatible |
| Networking | Multiple HDS PRO/LIVE | Halo radar support | Outboard Pilot | NMEA 2000 engine data | Sonar/chart sharing | Weather/Audio support | Lowrance app support |
| Physical | 13.7″ W x 8.5″ H x 3.1″ D | 5.7 lbs / 2.6 kg | IPX7 | Flush/gimbal bracket | 12V DC | Operating -15°C to 55°C | Rugged plastic |
| Compatibility | 15-40 ft boats | Freshwater/coastal fishing | C-MAP/Navionics | Active Imaging HD 3-in-1 | Freshwater/saltwater | Active Imaging HD, 1kW CHIRP | HDS LIVE/Carbon, Elite FS |
| Display | 12″ SolarMAX HD touchscreen | 1280×800 | 1200 nits | Wide angles | Multi-touch, programmable keys | Pure White LED | Horizontal/Vertical |
| Sonar | ActiveTarget 2 ready | Medium/High (83/200 kHz) | 455/800/1200 kHz | 1000 ft (CHIRP), 300 ft (SideScan) | SideScan/DownScan (S3100 req.) | Forward, Down, Scout | 180°/270° with second AT2 |
| Navigation | 10Hz GPS/GLONASS | C-MAP DISCOVER OnBoard | Navionics, C-MAP REVEAL | Easy Routing, Autorouting | C-MAP Genesis Live | 3000 waypoints | 100 routes |
| Connectivity | 2 ports | NMEA 2000 | Wi-Fi, Bluetooth | Dual MicroSD slots | Power-Pole control | Ghost Trolling Motor control | Halo 20/20+/24 compatible |
| Networking | Multiple HDS PRO/LIVE | Halo radar support | Outboard Pilot | NMEA 2000 engine data | Sonar/chart sharing | Weather/Audio support | Lowrance app support |
| Physical | 13.7″ W x 8.5″ H x 3.1″ D | 5.7 lbs / 2.6 kg | IPX7 | Flush/gimbal bracket | 12V DC | Operating -15°C to 55°C | Rugged plastic |
| Compatibility | 15-40 ft boats | Freshwater/coastal fishing | C-MAP/Navionics | Active Imaging HD 3-in-1 | Freshwater/saltwater | Active Imaging HD, 1kW CHIRP | HDS LIVE/Carbon, Elite FS |

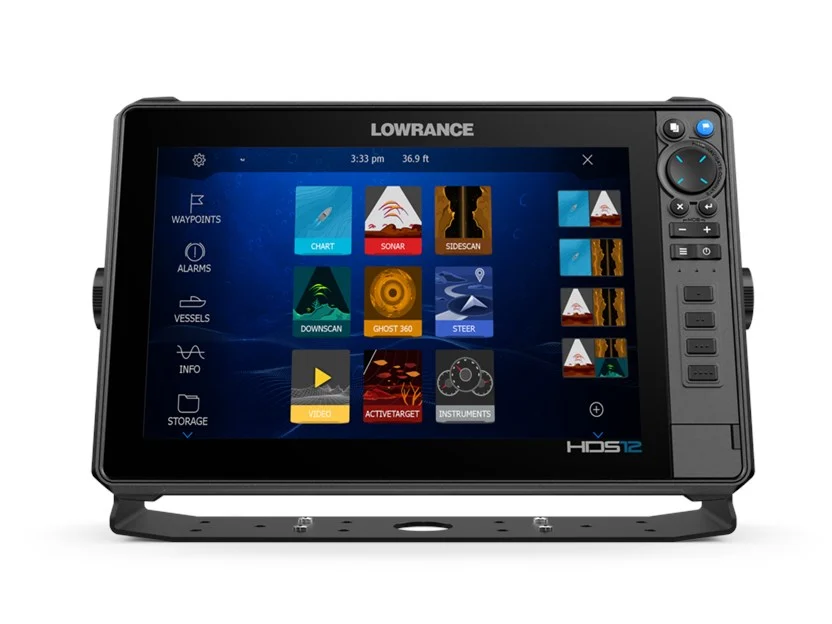

SolarMAX™ HD touchscreen viewable at extreme angles and through polarized lenses

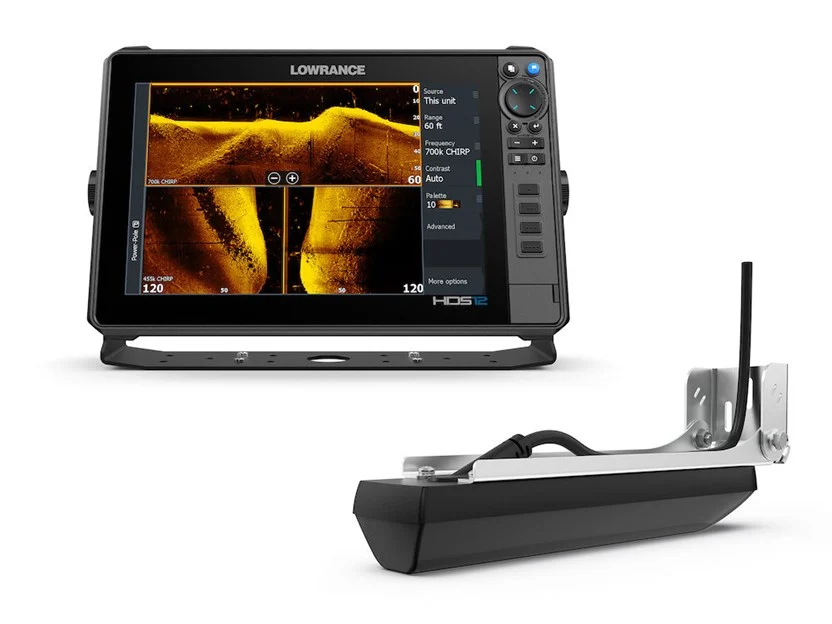

Ultra-high-definition Active Imaging™ HD with Lowrance CHIRP, SideScan, and DownScan Imaging™
ActiveTarget® 2 Live Sonar for detailed fish movement and structure visualization
FishReveal™ with SideScan and DownScan views (requires S3100 module)
Preloaded C-MAP® DISCOVER OnBoard charts with 1-foot contours on 19,000+ U.S. lakes and 9,400+ Canadian lakes
Real-time mapping with C-MAP® Genesis Live
Touchscreen control of Power-Pole® anchors, Ghost® Trolling Motor, Autopilot, and Lowrance Outboard Pilot
NMEA 2000®, Wireless, and Bluetooth® connectivity with smartphone notifications
Expandable with radar, autopilot, and SiriusXM® Weather/Audio support
